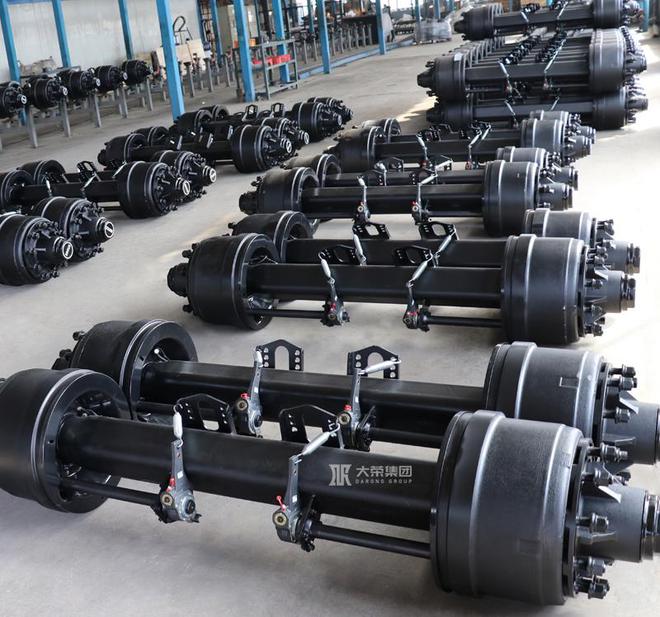

The truck axle of construction machinery is the main supporting component of construction machinery, responsible for transferring the entire weight of the construction machinery to the tires, and then passing it on through the tires to the ground. Its rigidity and strength are the main indicators, as they directly affect their performance and safety in use.
By connecting with the frame, the axle supports the overall structure of the construction machinery, ensuring its efficient, stable and safe operation in various environments. Therefore, we must strictly control the processing quality of the axle. Solution:

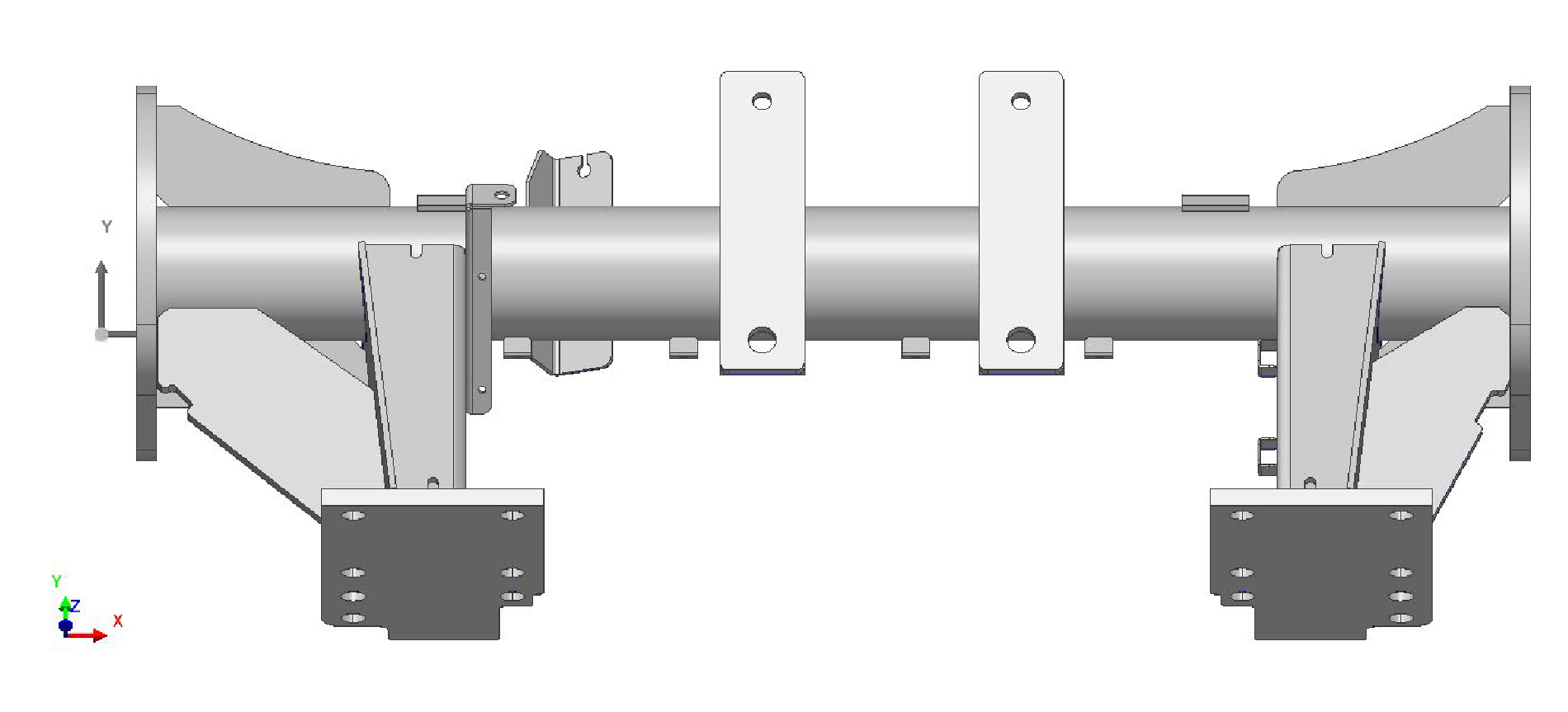

At this point, everyone knows that the front axle mainly involves power transmission, steering control and suspension system. To ensure a good connection with the frame and guarantee the safety and stability of the machinery during operation, we need to precisely measure the connection points of each part, such as the hole spacing, parallelism, hole position and other positions. Only by doing so can we reduce friction during use and extend the service life of the machinery.
In construction machinery, if the axle connected to the frame, especially the front axle, cannot work flexibly when connected to the frame, there will be friction between the shaft and the hole position due to the deviation. This repeated working for a long time will cause damage to other parts. Secondly, when adapting to different road conditions, the suspension system absorbs the impact caused by uneven road surfaces, but it cannot ensure the smoothness of driving and the comfort of passengers. Without a doubt, there must be processing errors here. Therefore, using conventional measuring tools is difficult to detect these parts such as holes, surfaces, parallelism, and some shafts or important parts. At this time, using the Konzonius HX series Chinese-arm measuring machine can quickly collect and accurately measure. Through this detection method, the quality control of the product can be improved and the detection efficiency of the product can be increased.
The joint-arm measuring machine, as a precision measuring instrument, has been widely used in various manufacturing industries, thus conducting three-dimensional measurement of the measured workpiece and obtaining effective detection data.

The joint arm measuring machine can quickly test the hole diameter, parallelism and coaxiality of the front axle. Just place the HX series Huaxia arm measuring machine at the appropriate position of the vehicle axle, and it can quickly collect the coordinate values of this point in the spatial position and directly feed them back to the measurement software for analysis.
The following is an application case of the detection of a certain construction machinery front axle, with a detailed analysis: Operation steps:

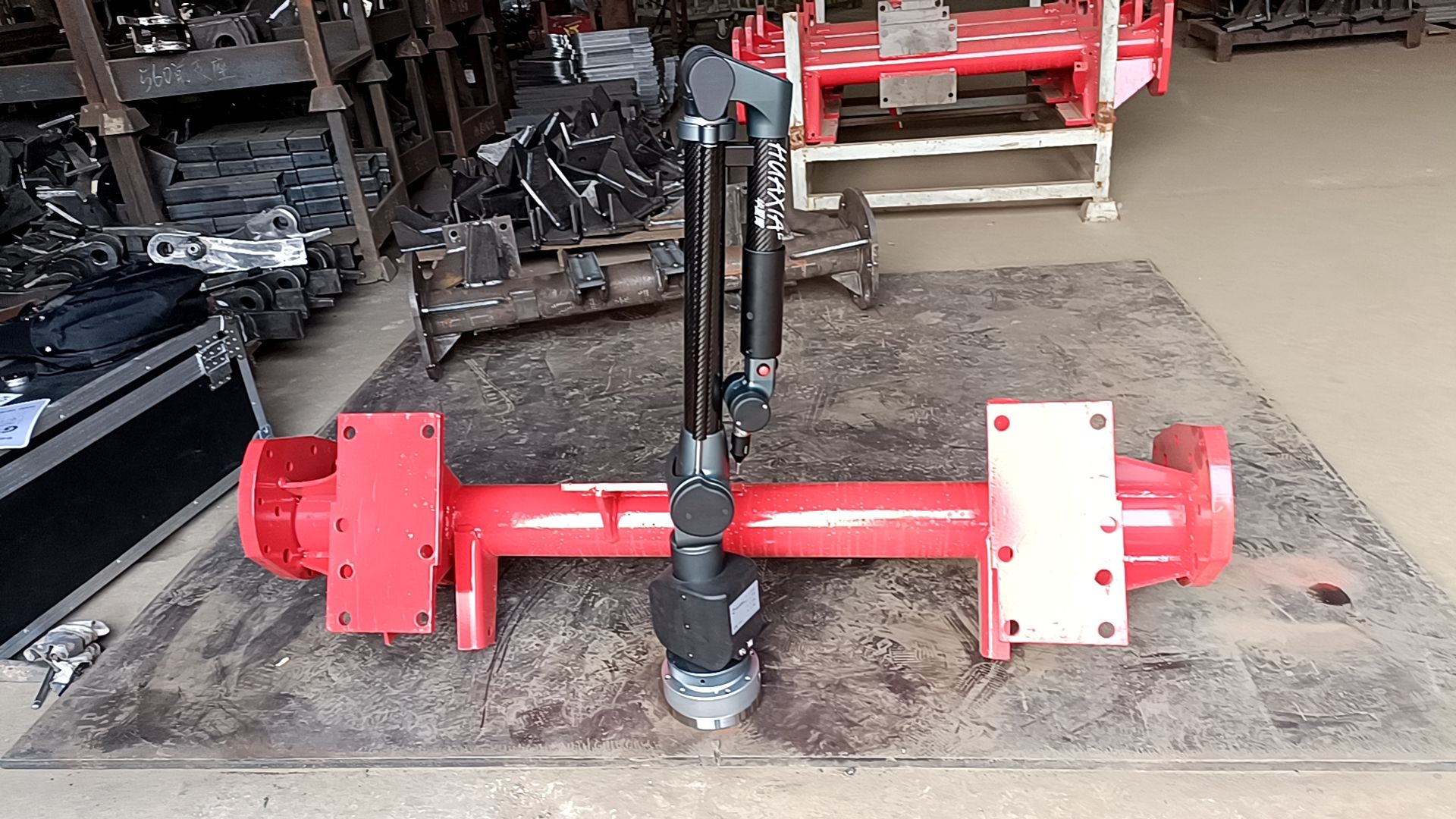

1. Place the HX series Huaxia arm measuring machine at the appropriate position on the axle and conduct the inspection.

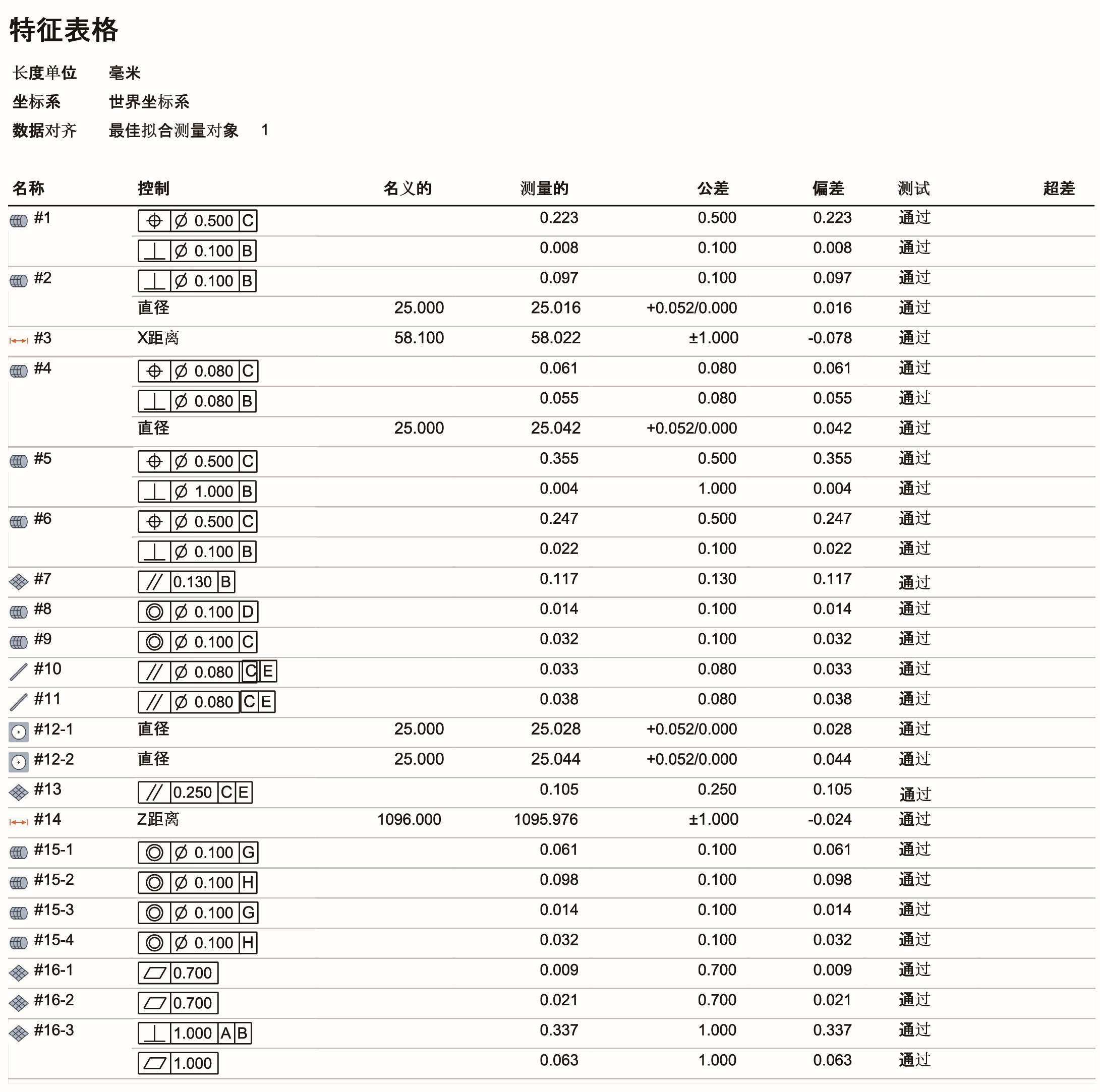

2. In the measurement software, set the diameters, parallelism, and coaxiality features to be measured for the front axle and collect the data.

3. Based on the numerical model, evaluate the data that has been detected;
The main features of the Kangzongnais HX series Huaxia arm measuring machine are its portability, simplicity of operation and the ability to perform online detection. It can be directly used in the factory site and can well meet the measurement needs of users in all aspects. The installation is simple and the usage is flexible. It can save a lot of time for the operators and eliminate the worry of repetitive detections, thereby improving work efficiency. These features are beyond the capabilities of traditional measuring instruments.
Summary:
In summary, the working principle of the front axle is to effectively transfer the force of the frame to the front wheels through specific mechanical structures and mechanical principles. It also supports the entire weight of the vehicle and adapts to various road conditions, ensuring the normal operation and flexibility of the vehicle. Therefore, in order to improve the efficiency of product inspection and control the accuracy of the products, having such a portable joint-arm measuring machine is of vital importance.
