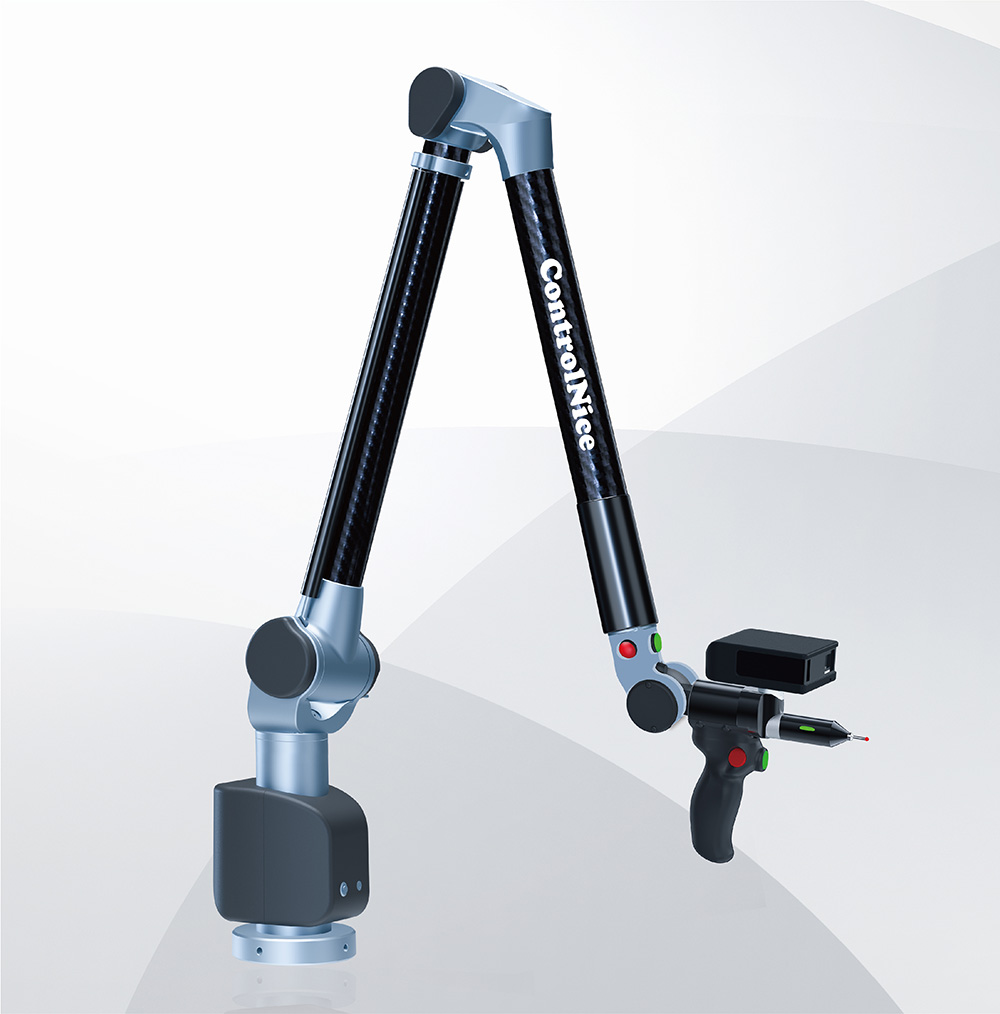

HX 7-Axis Blue Laser Scanner

Core Feature:

Key Feature: Blue Light Scanning Technology
This is the most distinctive feature of this device, mainly used to replace traditional contact probes for surface scanning. Without powder spraying, it can directly conduct high-precision scanning on highly reflective and dark-colored materials. The scanning speed is fast: it can quickly collect dense point cloud data and generate high-precision three-dimensional models.
Application Scenarios: It is highly suitable for the detection and reverse engineering of complex curved surfaces such as automotive body panels, aerospace blades, and mold surfaces.
Unlimited Rotation: The design of the 7th axis allows the probe or scanning gun to rotate infinitely, eliminating the risk of cable entanglement and enabling access to deep holes and inner walls of the workpiece that 6-axis equipment cannot reach.
Flexible Switching: The device supports the random switching of probes. According to the task requirements, mechanical hard probes, electronic trigger probes, floating probes, pipe laser forks, or blue laser scanning heads can be quickly replaced without re-calibration, greatly improving work efficiency.

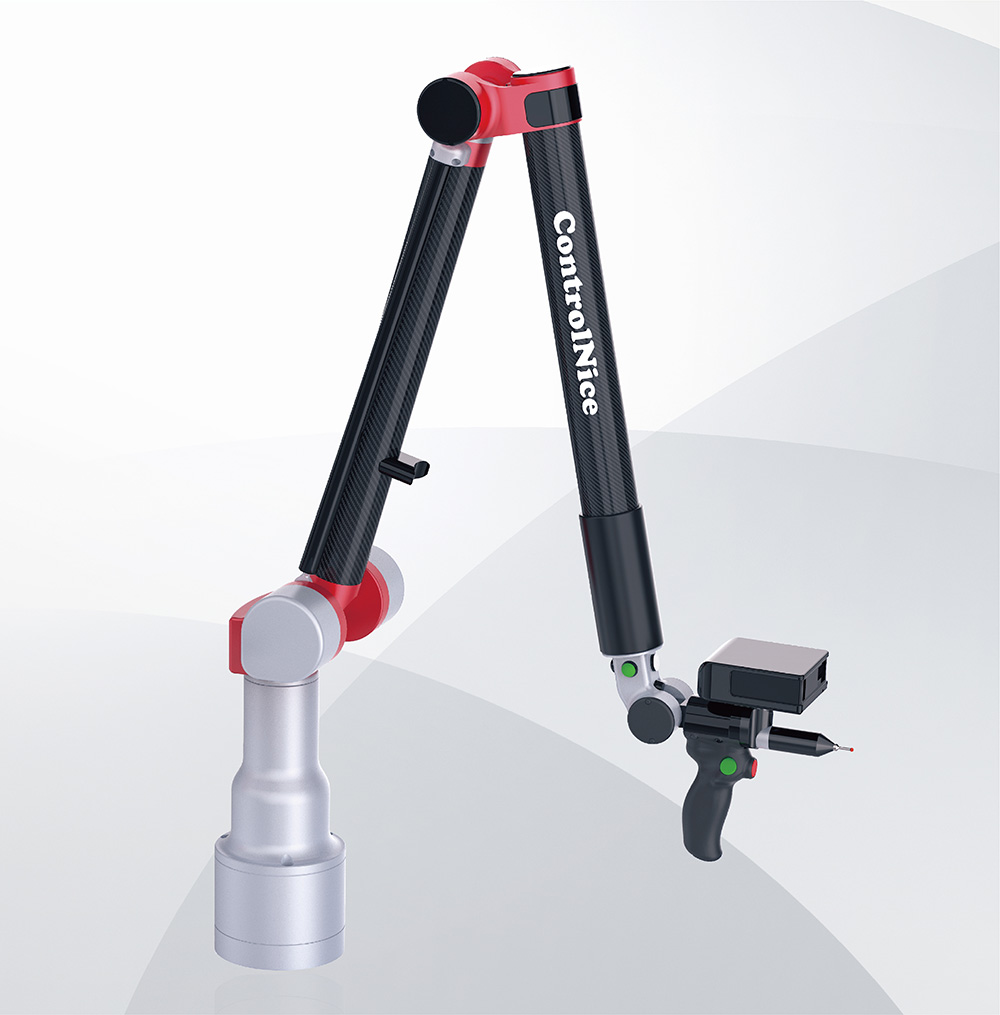

CNA 7-Axis Blue Laser Scanner

Core Feature:

Infinite Rotation: The 7th axis allows the probe or scanner to rotate infinitely, completely eliminating the hassle of tangled cables.
Deep Hole and Inner Wall Detection: Compared to 6-axis equipment, the 7-axis design can easily reach the deep holes, inner walls, and recessed surfaces of the workpiece, achieving 360° non-stop measurement.
Blue Light Scanning Technology: No powder spraying, efficient scanning
No powder spraying: This is its greatest technical advantage. Using blue laser technology, it can directly scan high-gloss surfaces (such as polished metals) and black materials (such as carbon fiber, black rubber) without spraying imaging agents on the workpiece surface, and achieve high-precision scanning.
Quick Point Cloud Acquisition: The scanning speed is fast, capable of instantly capturing millions of data points, generating high-density point cloud data, and perfectly restoring the three-dimensional geometry of the workpiece.

Software

Core Feature:

The CNA7 "software" independently developed by Kangzongnesi is a bridge that connects hardware with industrial applications. It utilizes Bluetooth technology and dedicated drivers to transfer the high-precision data of CNA7 to third-party industrial software, enabling you to easily accomplish various tasks ranging from "simple size measurement" to "complex surface reverse engineering".
