In the grand story of rail transit equipment manufacturing, the bogie is hailed as the train's 'legs,' and its dimensional accuracy directly affects the train's smoothness and safety. Recently, in a workshop at one of CRRC's manufacturing bases, a quiet 'contest' over precision has been taking place—technicians are using an advanced articulated arm CMM to carry out a full-scale dimensional inspection of a large bogie structure that has just been painted, using technology to safeguard the 'China speed'.
Live on Site: Flexible Measurement Empowers Complex Component Inspection

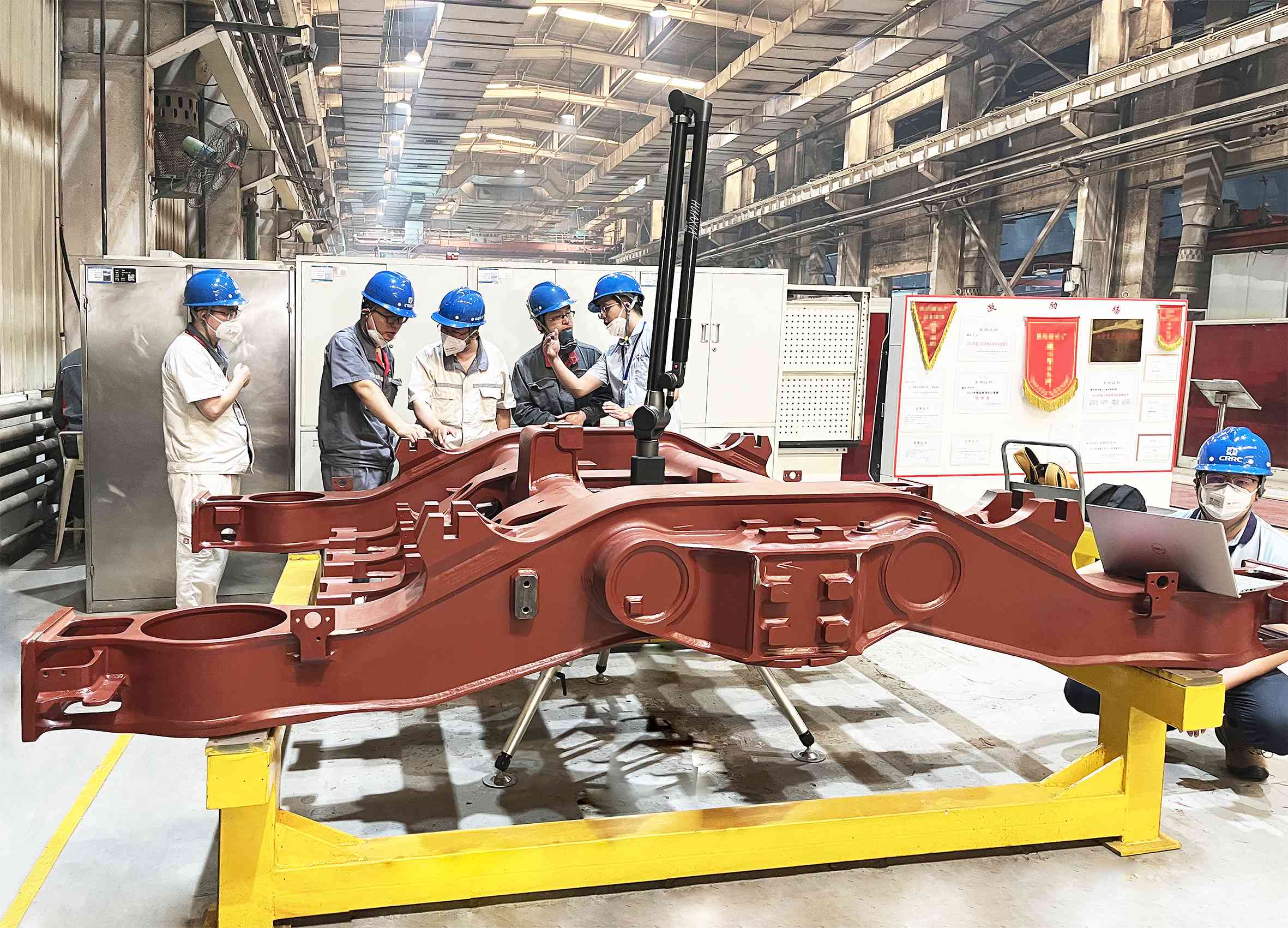

Walking into the spacious and bright production workshop, the first thing you notice is the huge red bogie frame steadily placed on the yellow dedicated tooling stand. Several engineers wearing blue safety helmets and work uniforms are gathered around the frame, looking focused. Unlike traditional large fixed CMMs, the ControlNice articulated arm CMM has become the center of attention on site. Portable and flexible: When it comes to large and complex parts like bogies, traditional equipment often struggles to reach all the critical spots. But the articulated arm CMM, with its multi-degree-of-freedom rotation, easily measures hard-to-reach corners and deep holes on the frame. Real-time data feedback: Technicians are monitoring measurement data on laptops in real time, ensuring that every critical dimension meets strict design standards.
Tech Breakdown: Why Choose an Articulated Arm CMM?
The bogie frame is one of the most important load-bearing components of locomotives and vehicles, and its welding requires extremely high processing accuracy. Introducing a joint-arm coordinate measuring machine mainly addresses the following pain points:
Overcoming space limitations: Bogie components are often several meters long and feature numerous reinforcements and mounting seats. The large working range of the joint arm allows full-size inspection without moving the workpiece, avoiding the risk of errors caused by re-clamping.
Efficient on-site inspection: Compared to moving the workpiece to a temperature-controlled measurement room, on-site inspection greatly shortens production cycles. Its portable design shifts quality control to the production line, achieving "inspection as you manufacture."

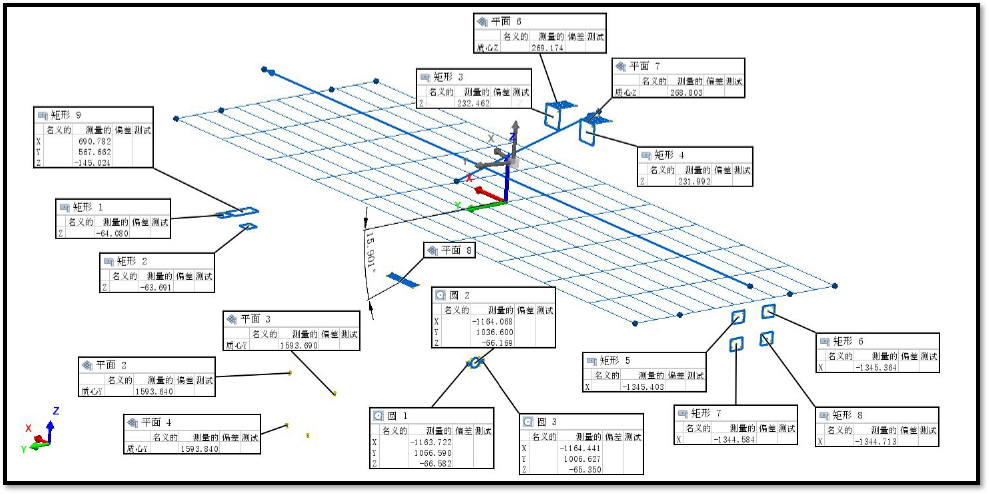

Digital quality management: Measurement data can be directly imported into analysis software to generate heat maps or deviation reports, providing precise data support for subsequent process improvements and welding deformation compensation, creating a closed-loop quality system.
From blueprint design to the actual implementation, the meticulous attention to every detail reflects our commitment to passenger safety. This time, using a joint-arm CMM to inspect the bogie isn’t just a routine quality check—it’s also a glimpse into how rail transit equipment manufacturing is moving towards digitalization and intelligence. Against the backdrop of the 'strong transportation country' strategy, it’s precisely these invisible precision measurement technologies that support the tangible heavy equipment of the nation, allowing China’s high-speed rail to run faster, steadier, and farther on the world stage.
