In modern automotive welding assembly workshops, welding fixtures are the key tools that determine the dimensional accuracy of the body-in-white. Due to factors such as long-term use, transportation, or thermal deformation, the fixtures may experience problems such as offset of positioning pins, wear on supporting surfaces, or structural deformation. If not detected and adjusted in time, it will directly lead to uneven door gaps, poor sealing, and even assembly interference and other quality issues.

In the daily application of automotive welding fixtures, the joint-arm three-coordinate measuring machine mainly addresses four core issues: rapid on-site inspection, non-overlapping measurement of complex structures, data-driven precise adjustment, and strong adaptability to the environment. It is a key tool for ensuring the welding accuracy of the vehicle body.
1. Solving the problem of "low efficiency in disassembling and sending for inspection of fixtures"

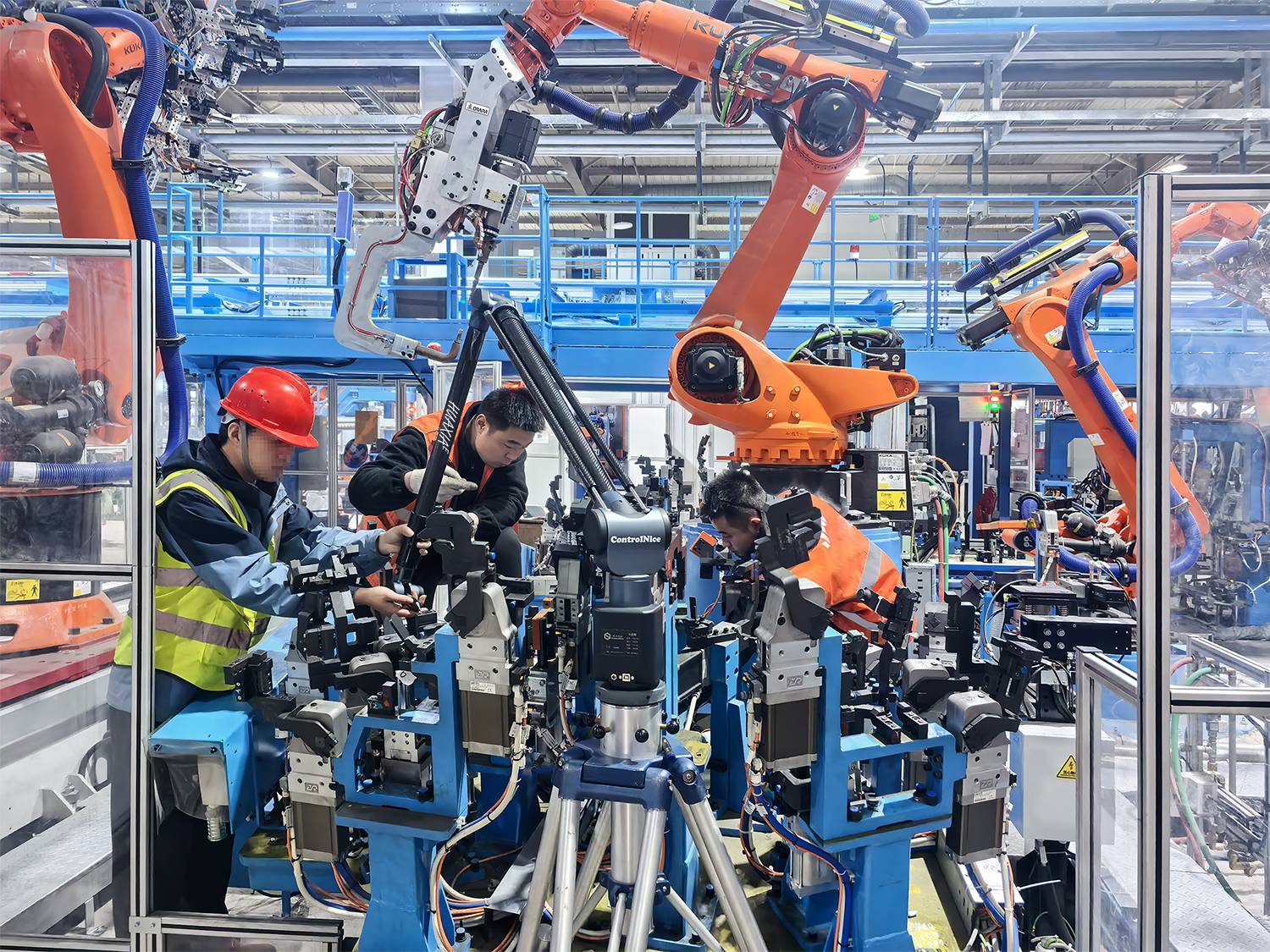

Traditional three-coordinate measuring machines require large welding fixtures to be disassembled and sent to a constant temperature laboratory for inspection. This process is time-consuming, labor-intensive, and prone to causing secondary damage. The joint-arm measuring machine is lightweight and can be directly deployed in the welding workshop site, enabling "immediate measurement and adjustment", significantly shortening the debugging cycle.
2. Solving the problem of "死角存在导致复杂结构测量困难"
Welding fixtures often contain internal cavities， inclined surfaces， and curved surfaces that traditional tools cannot reach. The joint-arm adopts a 6-degree-of-freedom design， allowing it to flexibly enter hidden areas and achieve 360° full-direction measurement.
3. Solving the problem of "large manual measurement errors and difficult data traceability"
Manual tools (such as tape measures and micrometers) are prone to data deviations due to differences in personnel operation， and cannot generate digital reports. The joint-arm collects data through contact-type probes， automatically compares CAD digital models， and outputs shape and position tolerance diagrams in real time， visually displaying the out-of-tolerance areas. The measurement data can be stored and used for subsequent analysis， enabling precise traceability of quality issues.
4. Solving the problem of "environmental fluctuations in the workshop affecting accuracy"
The temperature and humidity in the welding workshop fluctuate greatly， and traditional equipment is prone to interference. The joint-arm is equipped with temperature and humidity sensors and a temperature compensation system， maintaining micrometer-level accuracy in the 0-45℃ environment， ensuring stable and reliable measurement results.
This "measurement-analysis-adjustment" closed-loop process not only improves fixture maintenance efficiency but also promotes the transformation of automotive manufacturing from "experience-based debugging" to "data-driven". With the increasingly widespread application of lightweight and high-strength materials in new energy vehicles， the accuracy requirements for welding fixtures have become more stringent. The joint-arm three-coordinate measuring machine has become the "invisible guardian" for ensuring the quality of intelligent manufacturing.
