In the grand symphony of automobile manufacturing, the precise fit of each component is a crucial note that ensures the ultimate product's superior quality. Among them, the door and rear cover, as the core of the body panel, the processing accuracy of their stamping molds directly determines the matching degree, sealing performance and appearance quality of the vehicle body. The traditional mold inspection methods often face challenges such as low efficiency, difficulty in ensuring accuracy, and difficulties in transporting large molds. Now, with the wave of Industry 4.0 sweeping in, a more flexible and efficient solution - the portable articulated arm three-coordinate measuring machine, is becoming the new favorite in the field of automobile mold inspection, injecting new momentum into precision manufacturing.
The challenges of traditional inspection: The battle between efficiency and accuracy
The molds for the door and rear cover are usually large in size and have complex shapes, with extremely high processing accuracy requirements. The tolerance range is often measured in micrometers. In the past, the detection of such molds mainly relied on fixed bridge-type three-coordinate measuring machines. Although their accuracy is impeccable, the limitations are obvious:
Transportation difficulties: From the processing machine to the temperature-controlled and humidity-controlled measurement room, the process is cumbersome and there is a risk of collision, consuming a lot of time and effort.
Measurement blind spots: The fixed three-coordinate structure limits its measurement range. For complex structures such as deep cavities and concavities of the molds, the probes often cannot reach, forming measurement blind areas.
Environmental dependence: High-precision measurement requires strict environmental conditions. The temperature difference between the workshop and the measurement room may affect the accuracy of the measurement results.
Efficiency bottleneck: The long waiting and preparation time prevent the molds from being put into production in time, affecting the overall production rhythm.
Articulated arm three-coordinate: Moving the measurement room to the machine
The emergence of the portable articulated arm three-coordinate measuring machine has completely overturned the traditional inspection mode. It is like a flexible "measurement dancer", bringing laboratory-level measurement capabilities directly to the production site.

1. Ultra-portable and highly flexible

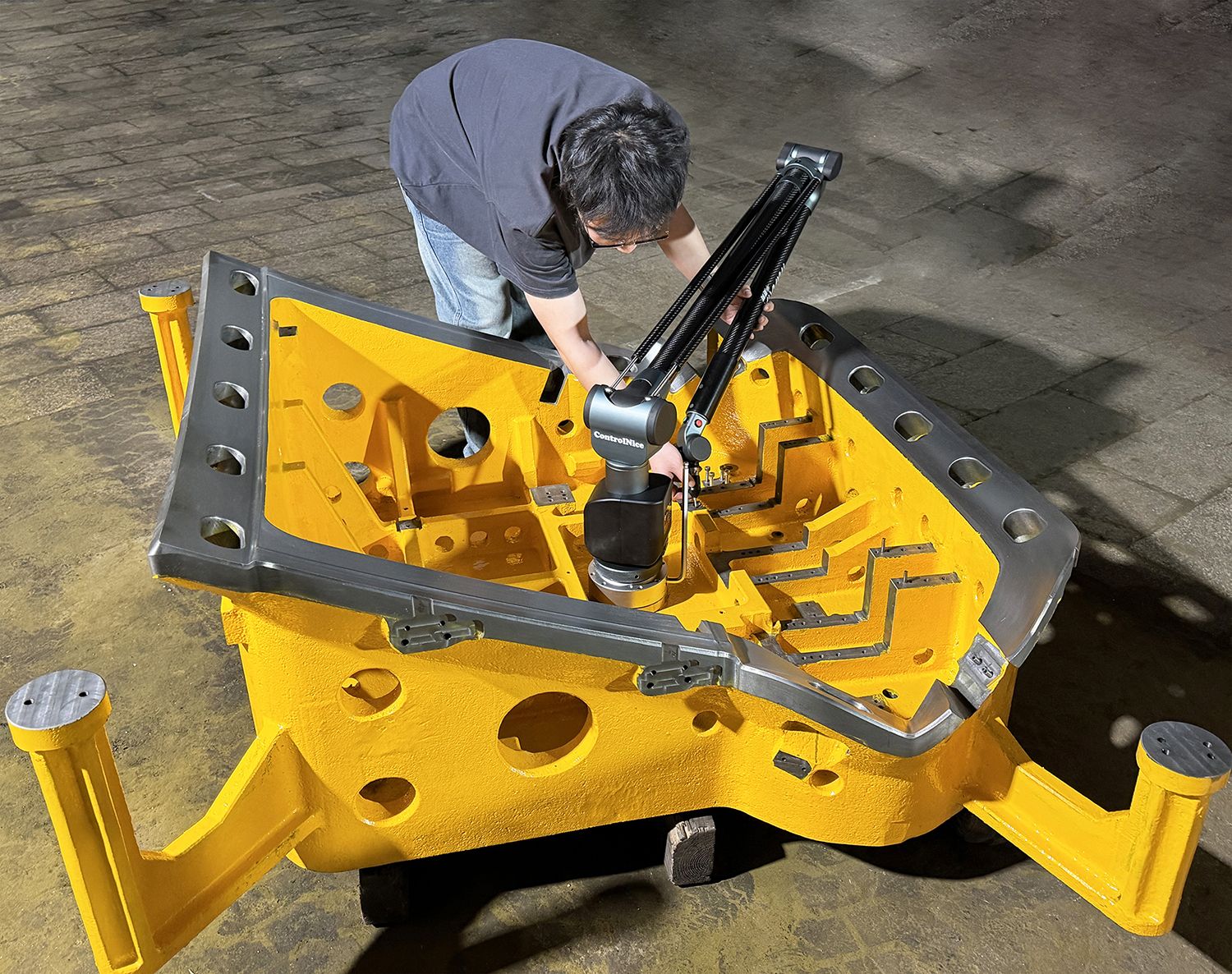

The joint arm is made of aerospace-grade carbon fiber body and titanium alloy joints, achieving a perfect combination of lightweight and high rigidity. Its portable flexibility enables it to enter any complex cavities and hidden corners of the mold without死角， and can easily measure key features such as the reinforcement ribs of the door mold and the inner plate of the rear cover mold.
2. Micrometer-level on-site measurement accuracy
Although it is a portable device， its measurement accuracy is not compromised. The joint arm can achieve high-precision measurement in a workshop environment ranging from 0 to 45℃， fully meeting the detection requirements of automotive molds. Whether it is the positioning pin holes， flatness， or complex free-form contour dimensions of the mold， they can all be accurately captured.
3. Efficient detection and real-time feedback

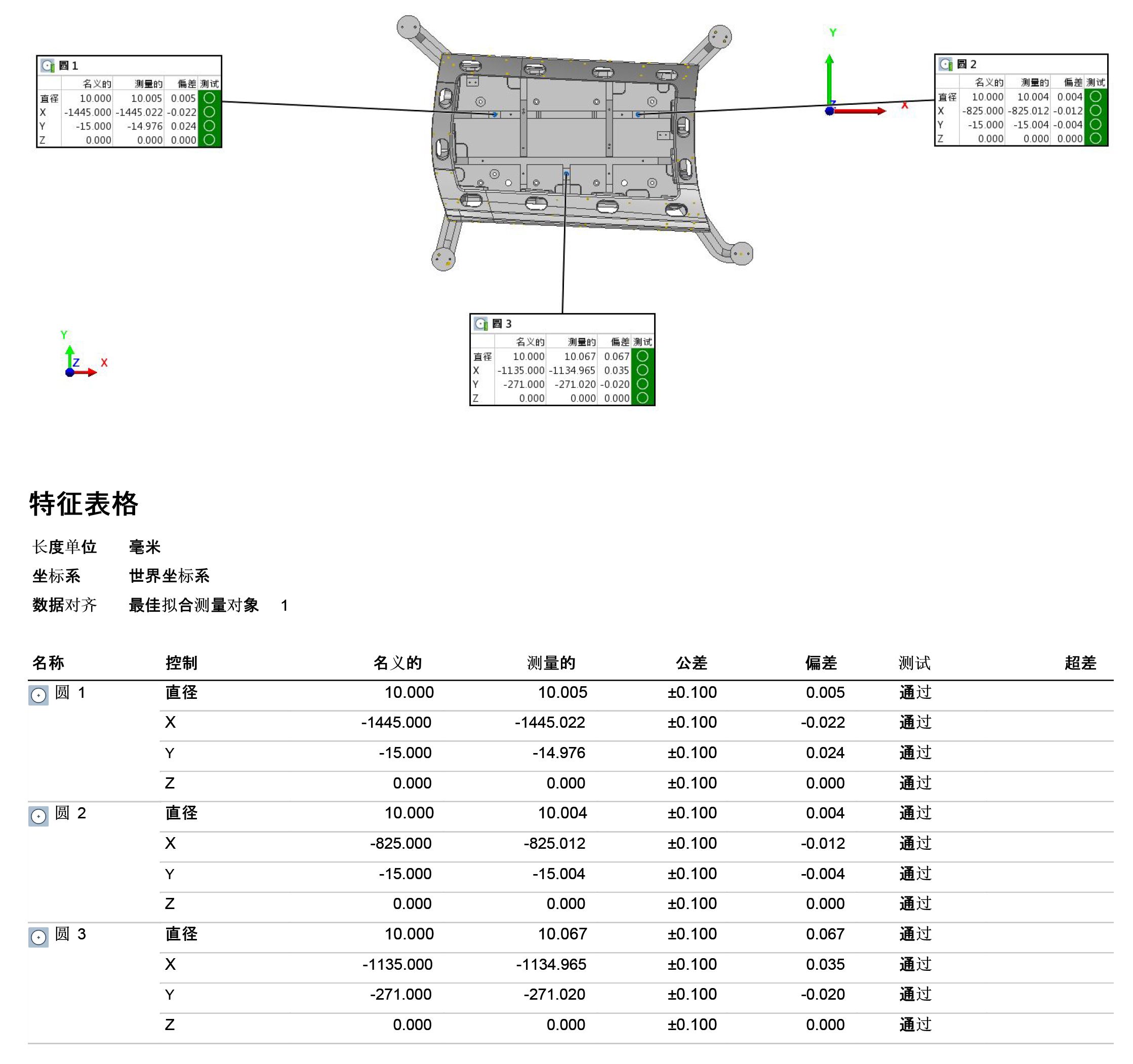

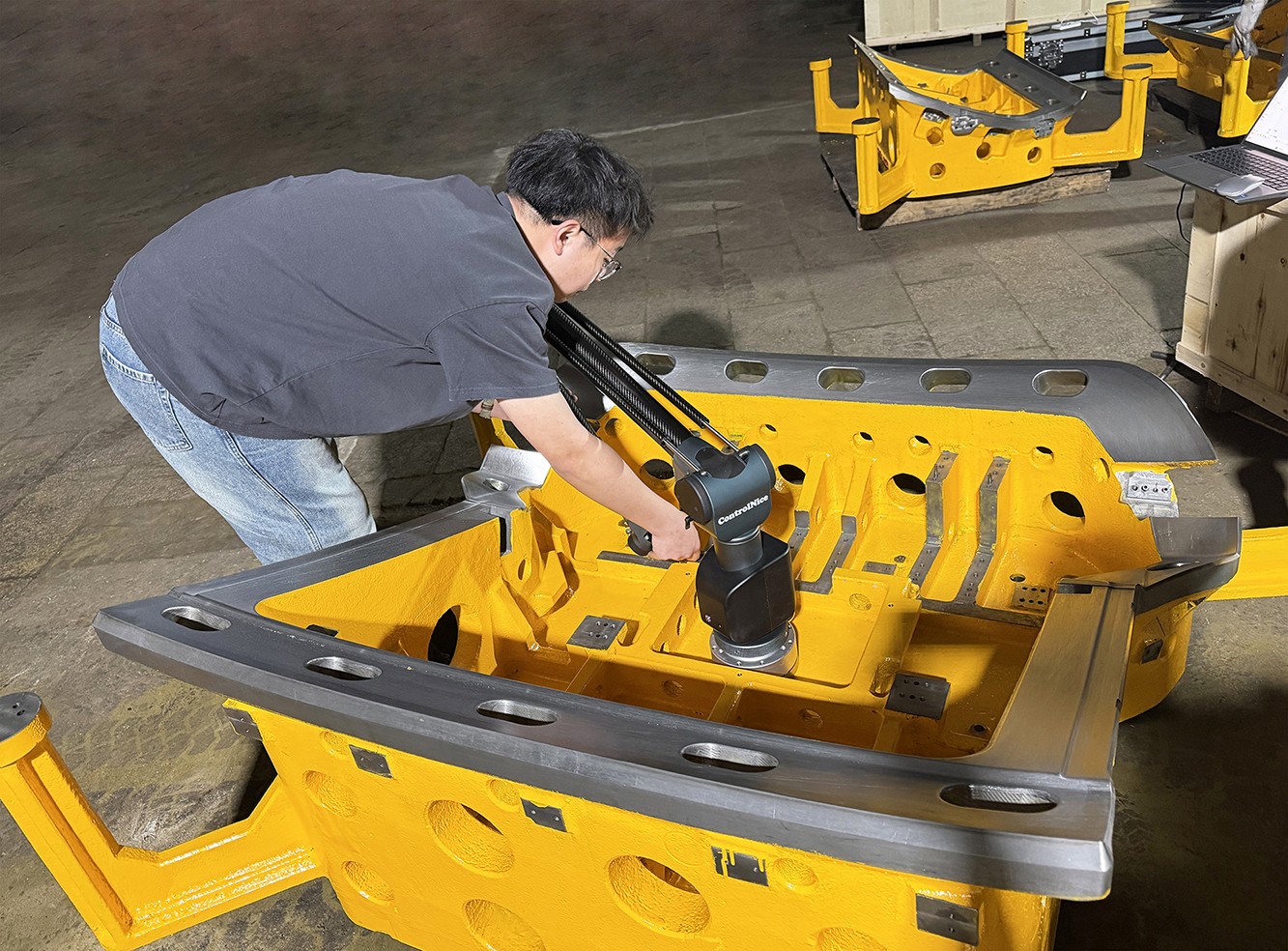

After the mold processing is completed， the operator can directly conduct the detection on the machine tool or in the assembly area. Using contact-type probes， data is quickly collected and compared in real time with the CAD digital model. The measurement software can immediately generate an intuitive chromatogram， clearly showing the processing deviation， helping technicians quickly locate the problem and achieve "on-the-fly adjustment"， reducing the mold debugging cycle from several days to several hours， significantly improving the delivery efficiency of the mold.

In today's automotive industry, where there is a pursuit for higher efficiency and better quality, the innovation of measurement technology is the key force driving industrial upgrading. The portable articulated arm three-coordinate measuring machine, with its outstanding portability, high precision and strong on-site adaptability, has successfully solved the temporal and spatial problems in the detection of large and complex molds. It is not only an upgrade of the measuring tool, but also a deep practice of the concept that "precision equals productivity". When the articulated arm gracefully moves on the mold surface and accurately captures every data point, what we see is the continuous pursuit of quality in modern industry and the infinite possibilities that intelligent manufacturing brings to automotive manufacturing.
